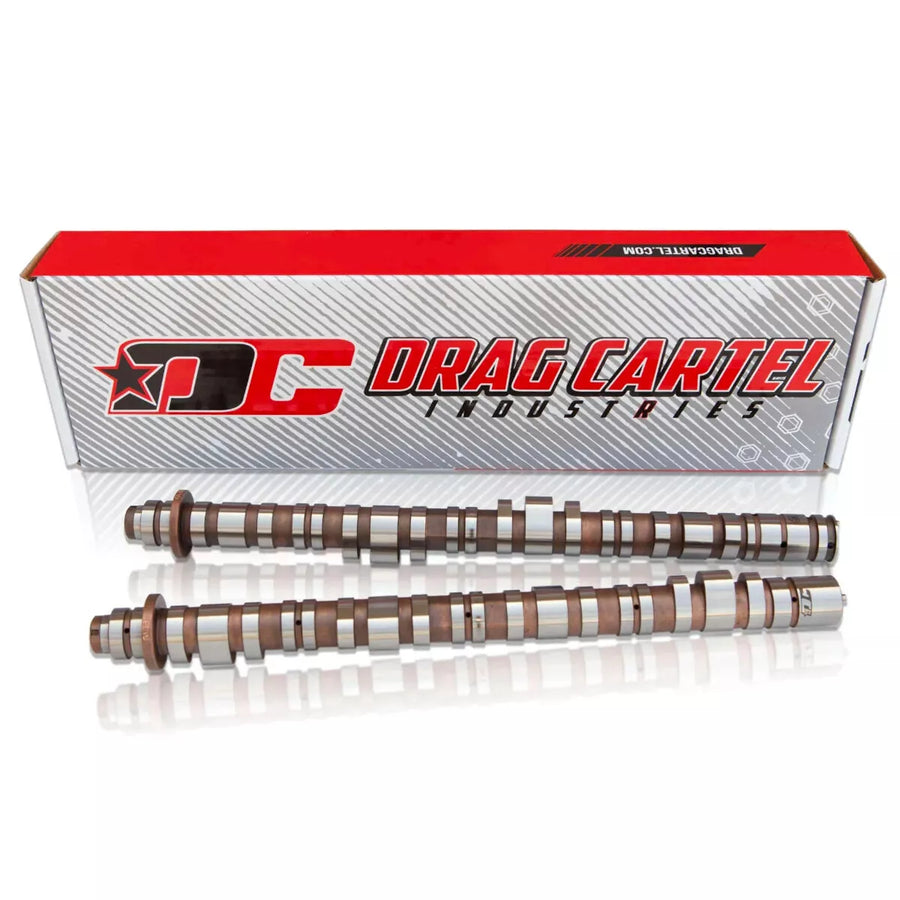

Drag Cartel Stage 2.2 Endurance Camshafts (Cams) Honda K20 K20A K20Z3 K24 K24A2
After years of high end race and DYNO testing DC has released a line of 8620 steel billet camshafts that deliver the ultimate in high performance. Made from aerospace grade, 8620 steel billet material and CNC ground on state-of-the-art cam grinders, these DC cams deliver the utmost in rigidity at extended rpm range while reducing possible valve float. These are the best cams money can buy and are now available for all stages. The "K Series" is Honda's mass produced version of the roller rocker valve train assembly. Less friction, more rpm potential, faster action cam profiles...this engine has untapped potential.
ALL NEW 8620 Billet Material Camshafts
Intake: 13.5 mm Lift / .238 Duration @ .050
Exhaust :12.2 mm Lift/.233 Duration @ .050
Notes:
Torque the intake cam gear bolt to 83 lb-ft.
Torque the exhaust cam gear bolt to 51 lb-ft.
Torque the pulse plates to 29 lb-ft.
Engine and Applications:
K-series Engines: k20a2, k24a2
2001-2005 DC5 Type-R,
2002-2006 Acura RSX Type-S
2004-2006 Acura TSX
2006-2010 Honda Civic Si
Part Number: DC-002.2
