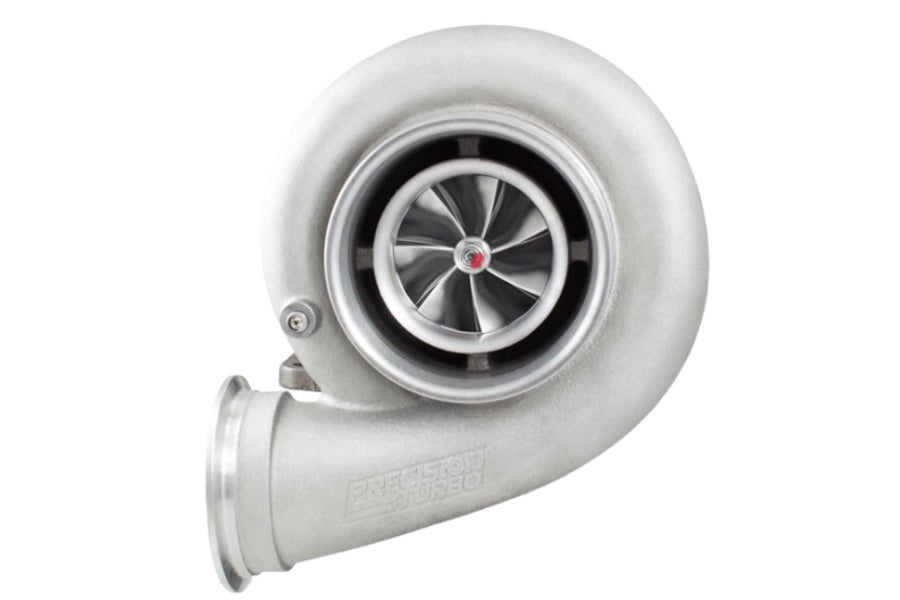

Precision Turbo And Engine 76mm Precision PT7685 Sportsman Gen2 CEA Turbo
Precision's Gen2 7685 is a proven turbo for competitive Drag Racing dominance. Rated for 1350hp depending on the application, it is available as a highly durable and fast spooling Ball Bearing CHRA Only. Exclusive CEA‚® (Competition Engineered Aerodynamics) compressor wheel machined from a 2618-aluminum forging with a 102.3mm exducer and 76.7mm inducer.
Compressor & Turbine Specifications:
- Compressor Wheel Exducer: 102.36mm
- Compressor Wheel Inducer: 76.71mm
- Compressor Housing Connections:
- Inlet: 5" Hose Coupler (GT42 Compressor Cover)
- Outlet: 3.5" V-Band (GT42 Compressor Cover)
- Turbine Wheel Exducer: 84.7mm
- Turbine Wheel Inducer: 89.54mm
